Product Description

2021 Export to Peru,Ecuador,Africa 3 wheels dumper,stronger mini dump truck with double shock absorption
Our tricycles o 4 wheel dumpers has been approvded by clients from Peru, Bolivia,Ecudoar, Malaysia Mongolia and etc over 40 countries!

We are factory of origianl mining truck factory,such as tricycle,four wheel truck, dump truck for small o midium scale mining!Diesel or electrical three o 4 wheel mining cargo dumper is our main product, mainly used in mining, brickyard, sanitation, palmryand pasture. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.
We have the types of cargo tricycles dumpr truck and 4-wheel dumper trucks from 1ton to 30 tons for you to choose. We could help you choose the suitable model for you!

Advantages of tricycle mining truck and 4 wheel dump truck:

1. Improved design of main structure like two and half beam to assure large load and security;
2. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
3. Best diesel engine and battery group supplier to assure a robost performance;
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.

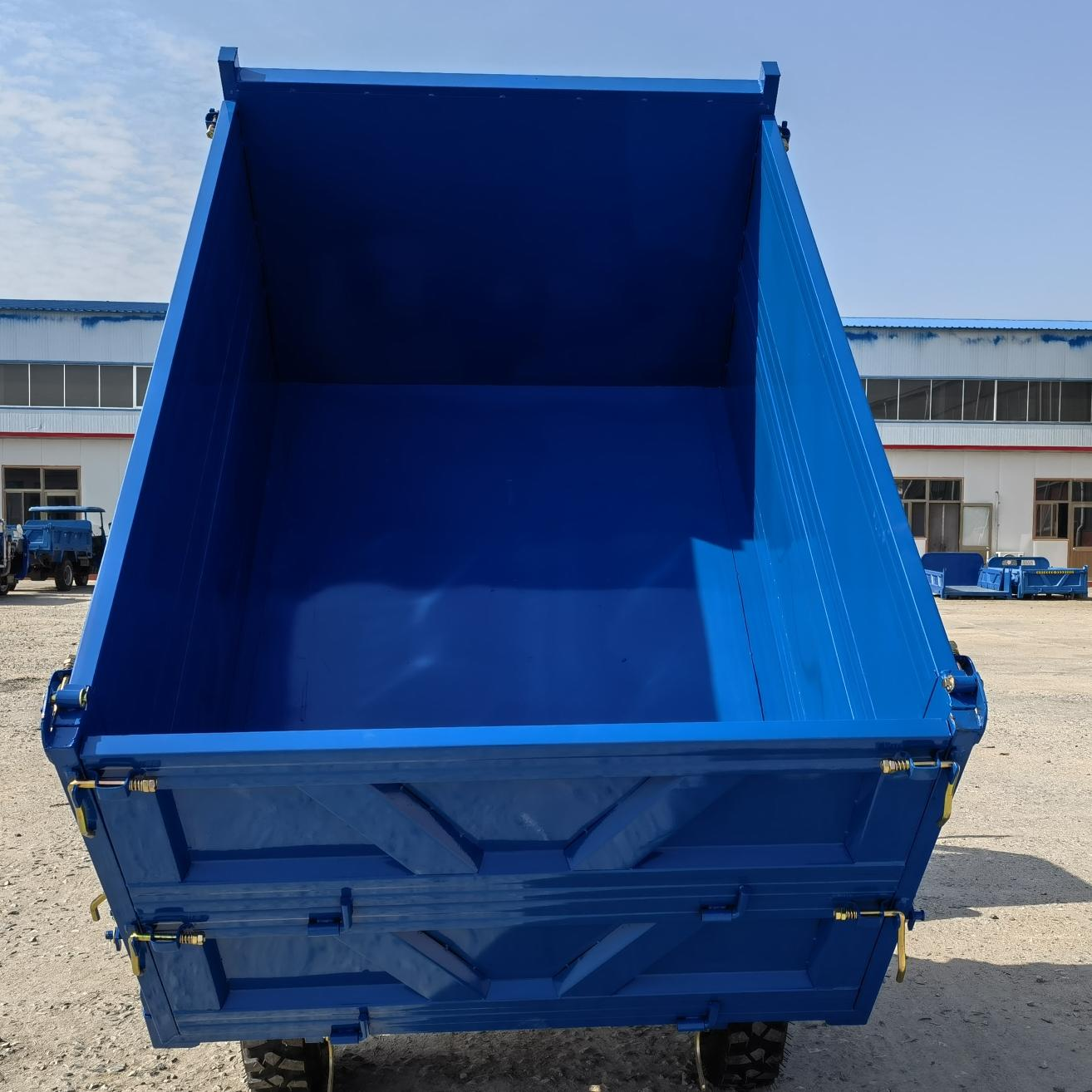

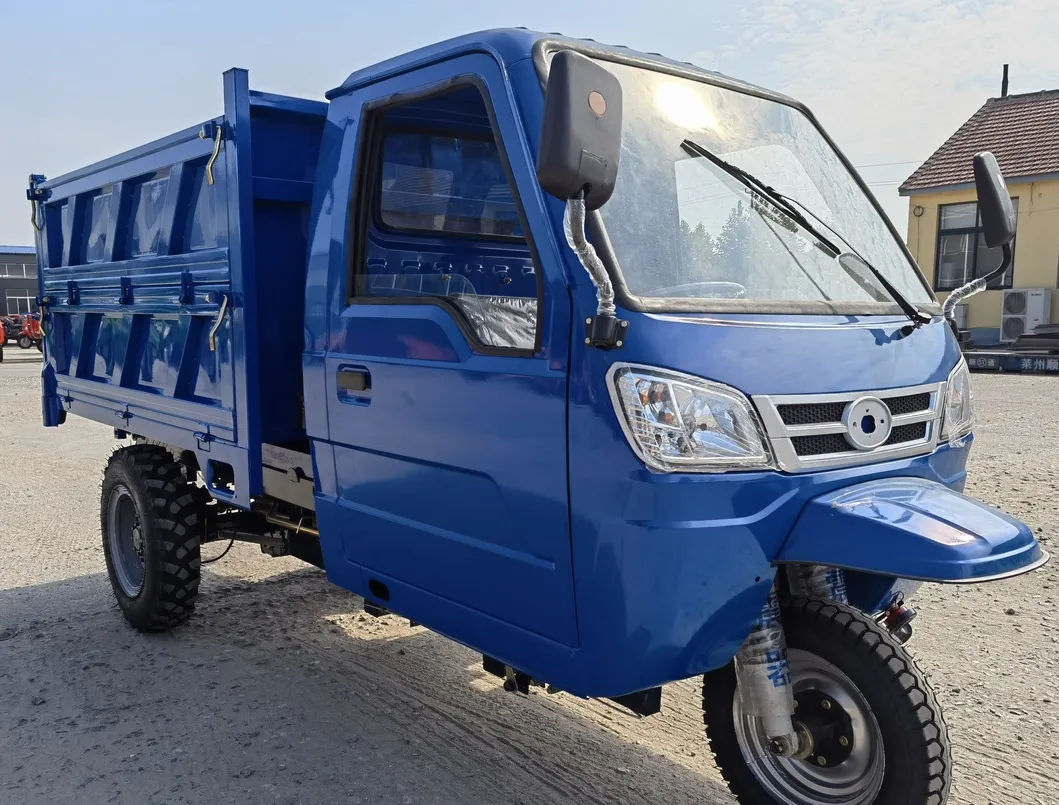

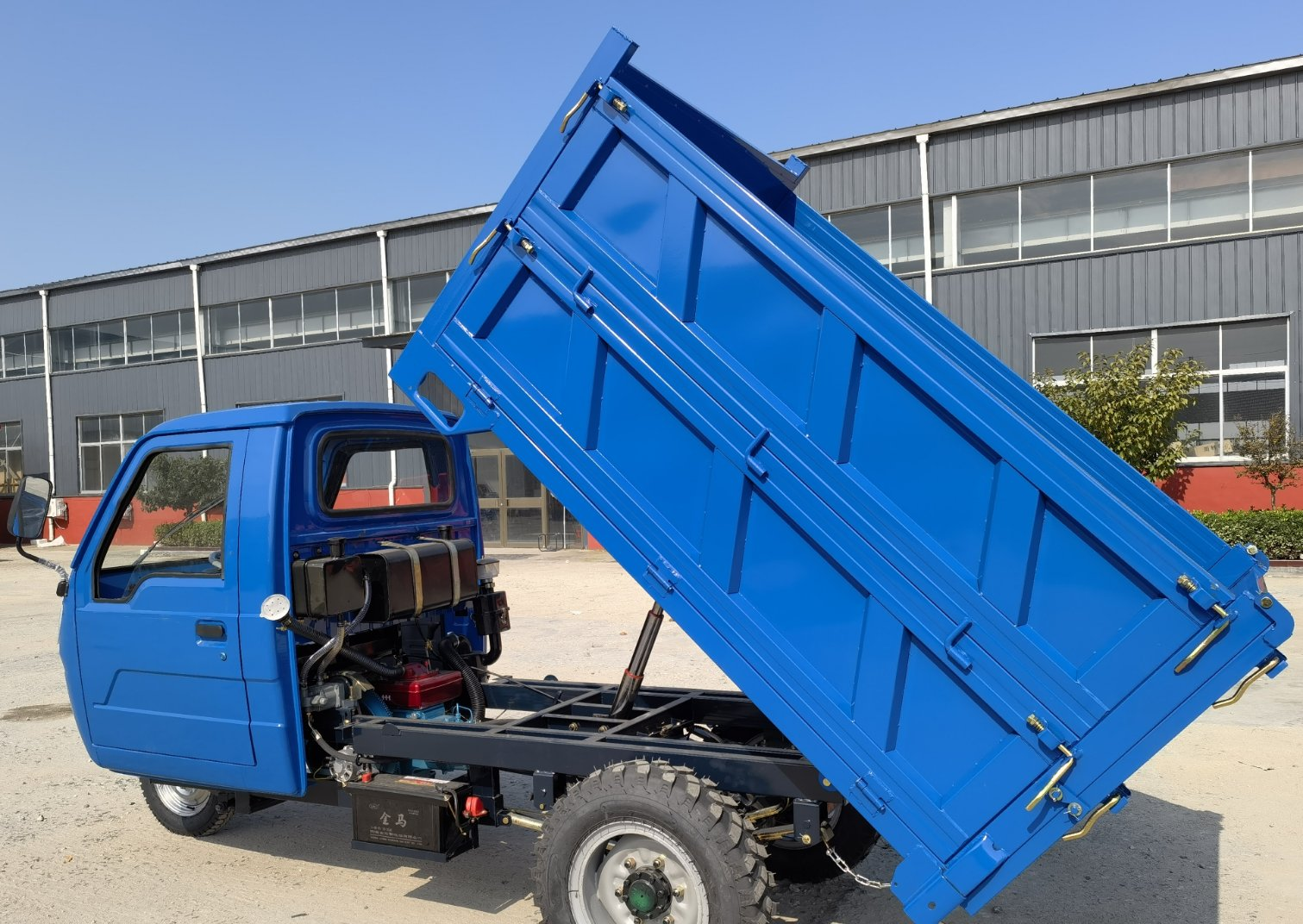

2021 Export to Peru, Ecuador, Africa 3 Wheels Dumper, Stronger Mini Dump Truck with Double Shock Absorption

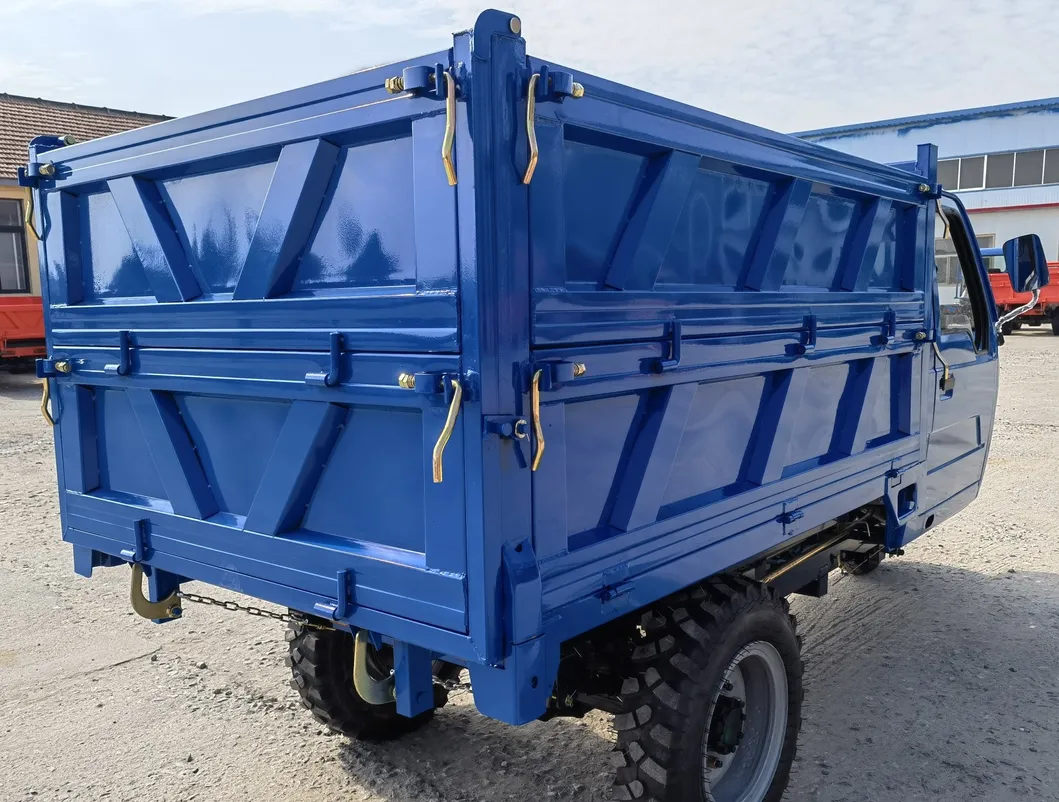

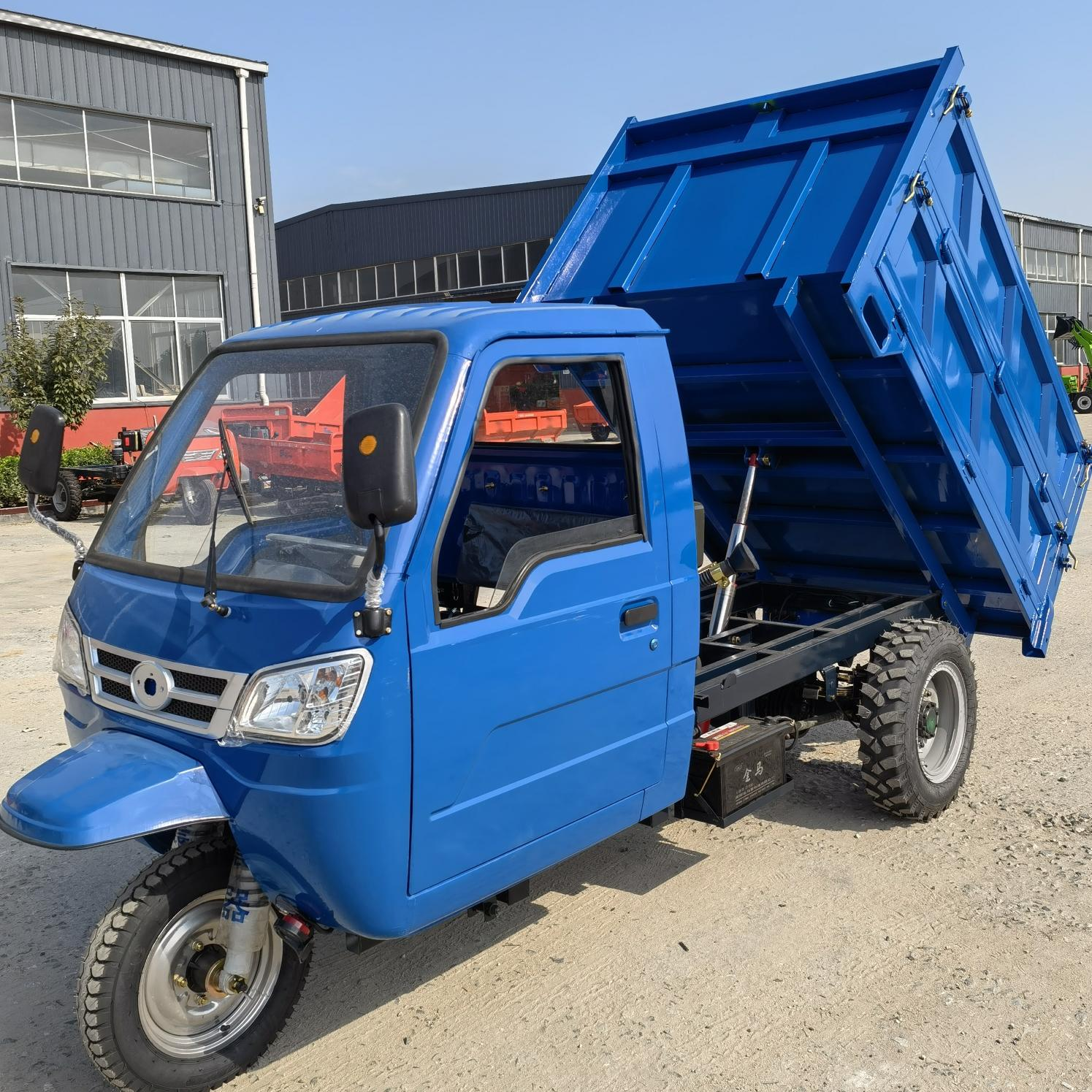

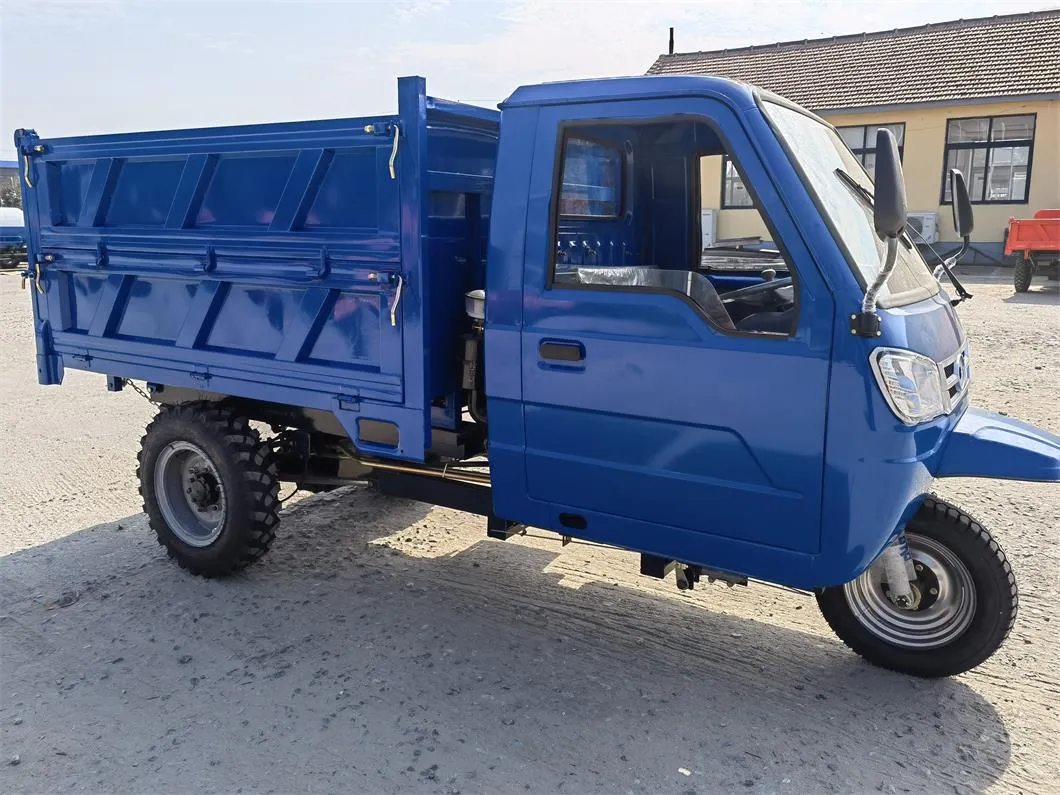

2021 Export to Peru, Ecuador, Africa 3 Wheels Dumper, Stronger Mini Dump Truck with Double Shock Absorption

Brief technical parameter sheet of electrical tricycles.

Model	GDC-01	GDC-02	GDC-03
Power source	Diesel engine	Diesel engine	Diesel engine
Engine Model	CF1105	CF1115	CF1115
Engine power	13KW/18HP	13KW/18HP	16.2KW/22HP
Driving position	Middle	Middle	Middle
Front axle Model	Double spring absorber	Double spring absorber	Triple spring absorber
Rear axle Model	GDC-01	GDC-02	GDC-04
Transmission model	GDC-01	GDC-02	GDC-04
Drive type	3×2	3×2	3×2
Transmission gear	3 Forward and 1 Reverse High-Low speed shift gear	3 Forward and 1 Reverse High-Low speed shift gear	3 Forward and 1 Reverse High-Low speed shift gear
Front tyre model	450-14	450-14	600-14
Rear tyre model	650-16	650-16	700-16
Leaf spring quantity	Rear: 15 Pieces	Rear: 15 Pieces	Rear: 15 Pieces
Leaf spring model	90×70×12MM	90×70×12MM	90×70×12MM
Carriage dimension	1600×1100×450MM	1850×1200×450mm	2000×1380×450MM
Carriage thickness	Bottom 3MM / Side 3MM	Bottom 3MM / Side 3MM	Bottom 5MM / Side 5MM
Unloading model	Front lifting	Front lifting	Front lifting
Hydraulic cylinder model	110×700MM	110×700MM	110×700MM
Steeing model	Center turbo steering	Center turbo steering	Center turbo steering
Breaking model	Oil brake	Oil brake	Oil brake
Cooling system	Water cooler	Water-cooler	Water-cooler
Cabin	N/A Customization	N/A Customization	N/A Customization
Overall dimension	3200×1100×1250MM	3450×1250×1250MM	3600×1400×1250MM
Exhaust treatment	Water treatment	Water treatment	Water treatment
Loading capacity	1 Ton	2 Ton	3 Ton

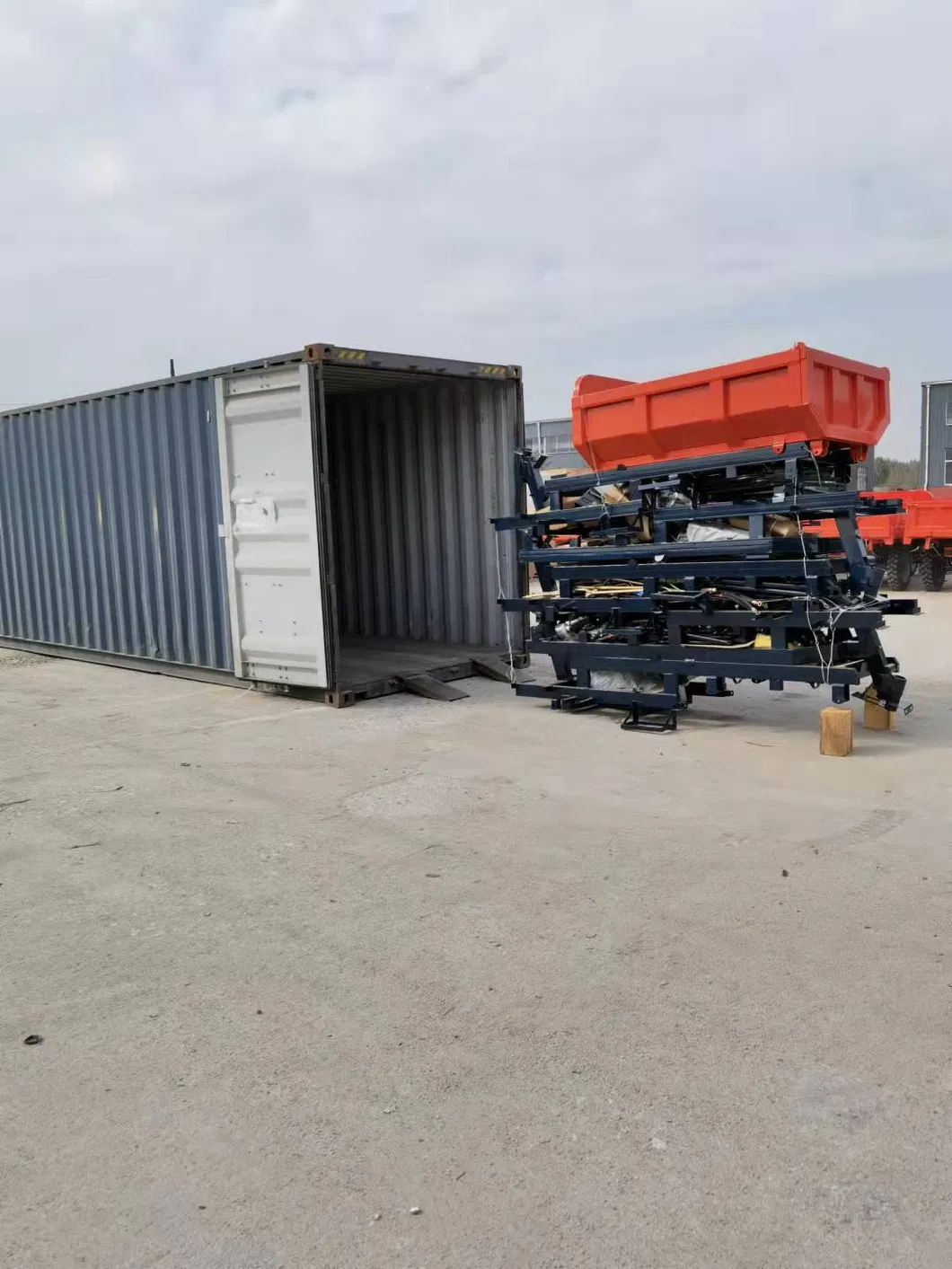

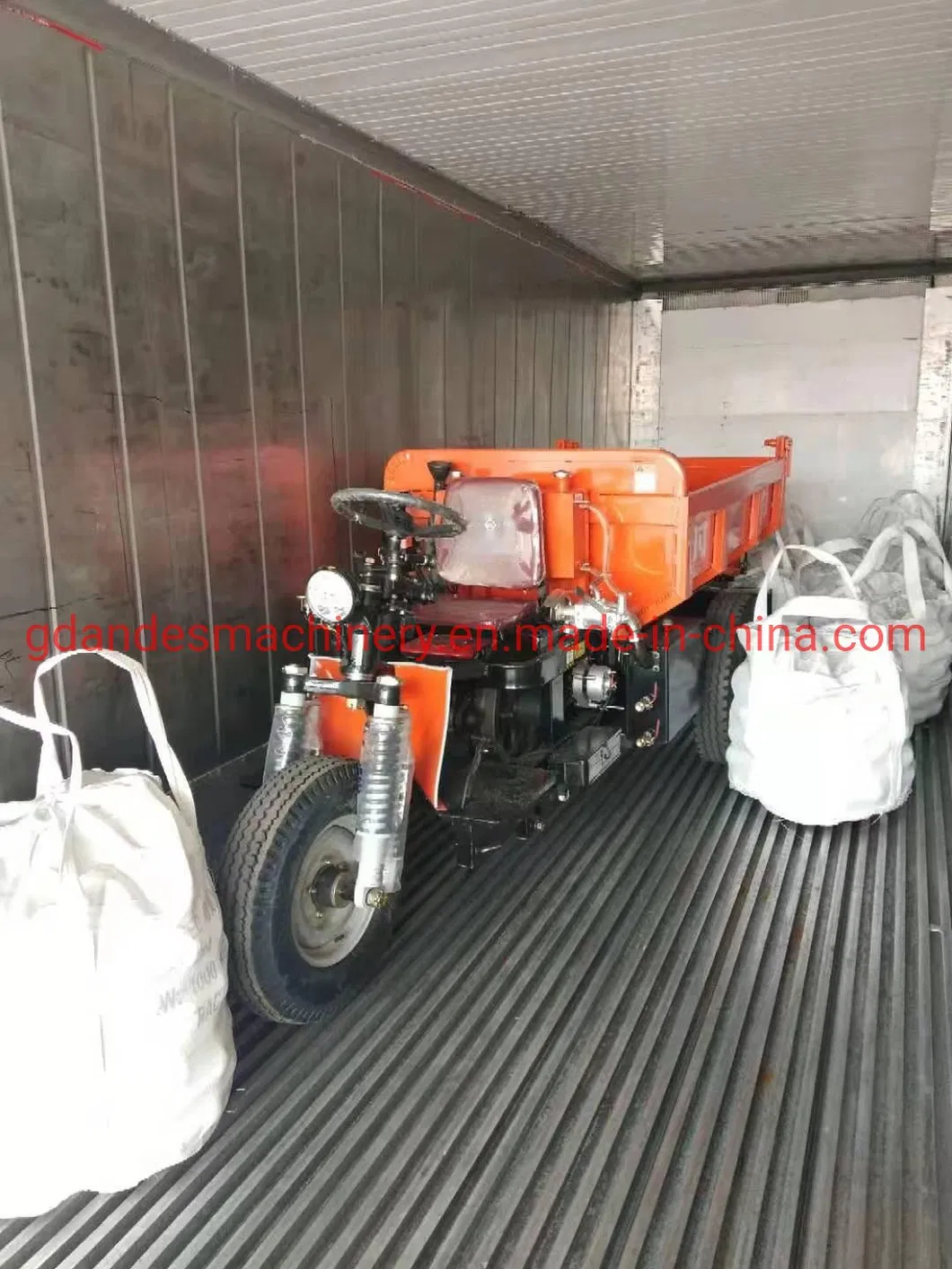

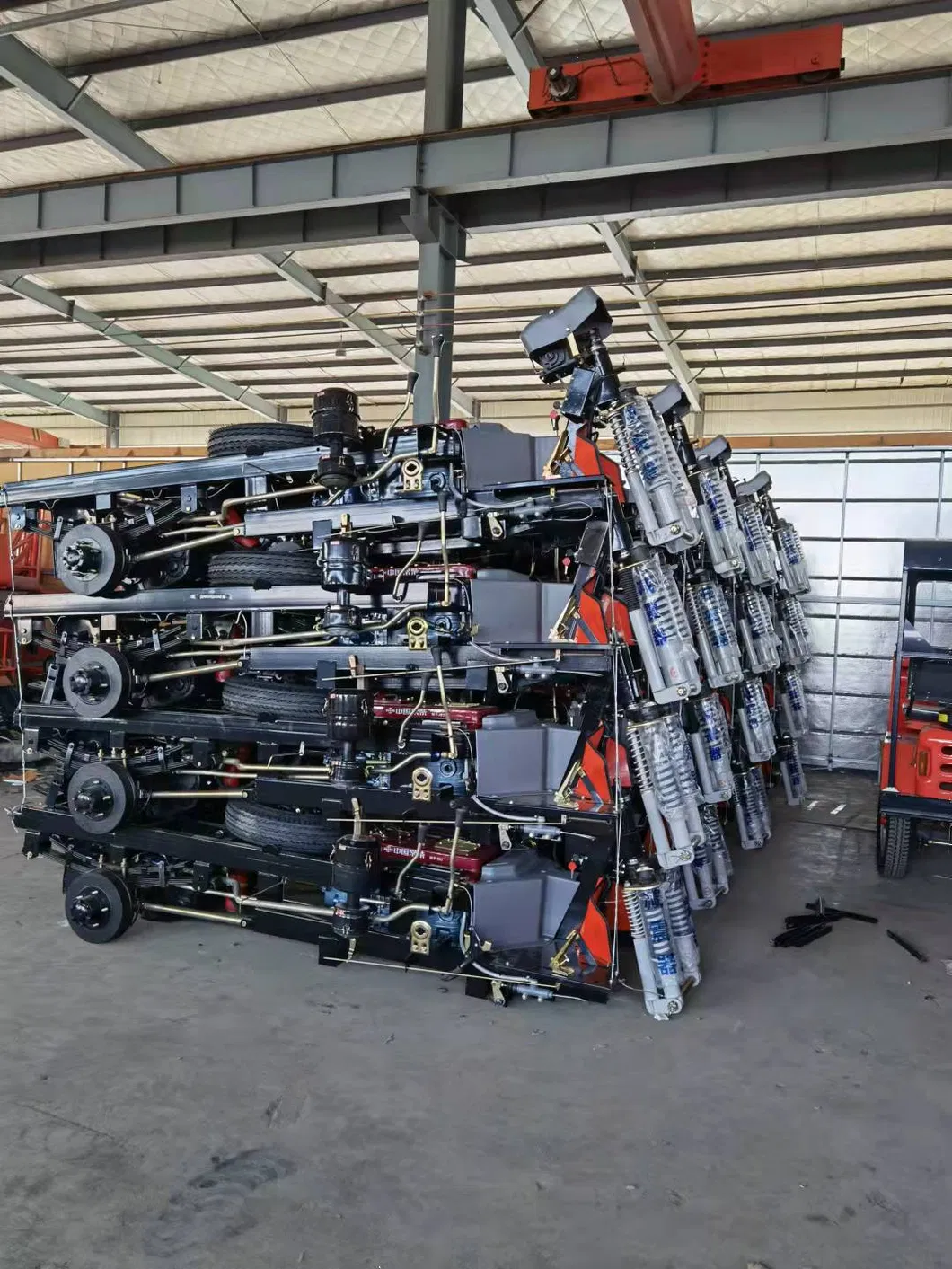

Packing and delivery

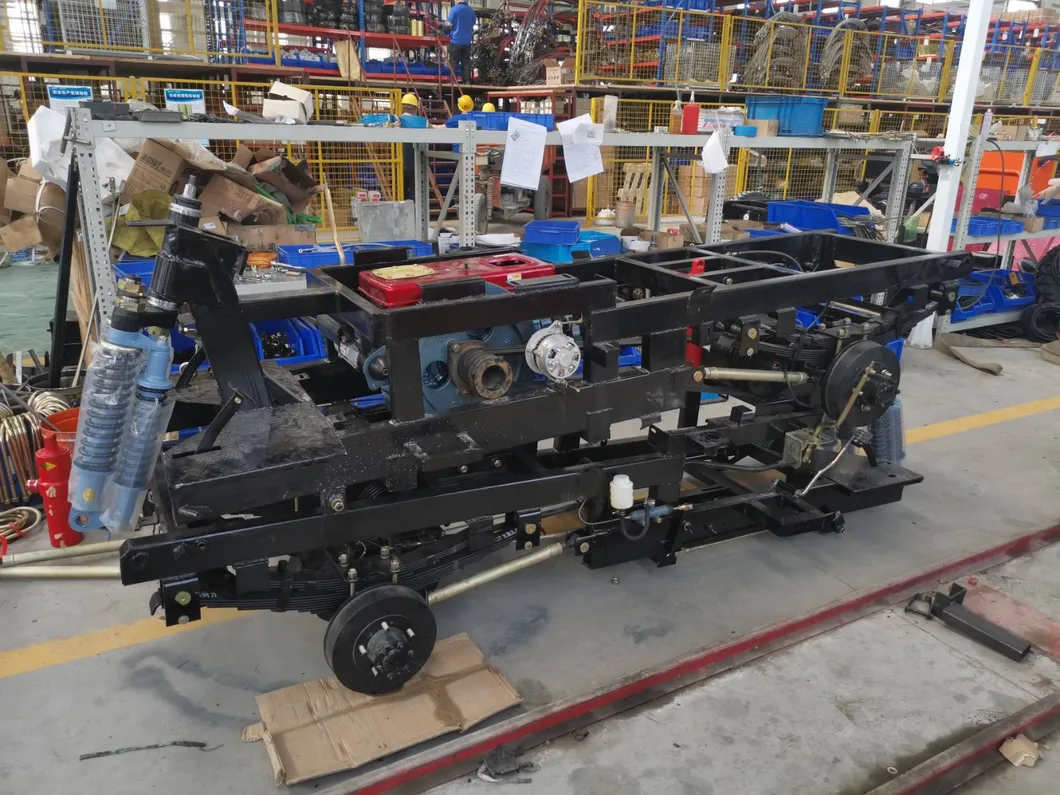

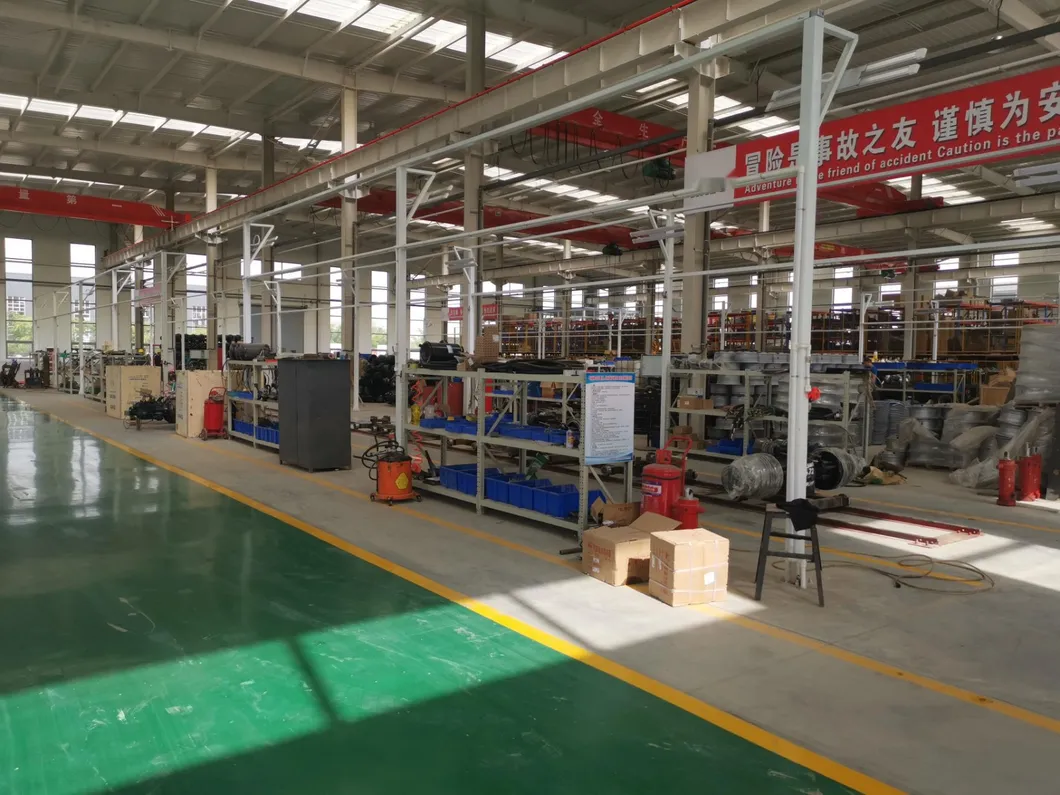

our workshop:

Qingdao Gudao Andes Machinery Co.,ltd. a factory of underground mining transportation tricycles and trucks with 25 years experience.
Our tricycles and trucks are one of the best qualities in China and exported to more than 40 countries all over the world, like Malaysia, Ecuador, Peru,Chile, Bolivia and Ghana, South Africa. Quality first is always our first principle.
With our products, we will help you create more value in your future business with our best quality and service.

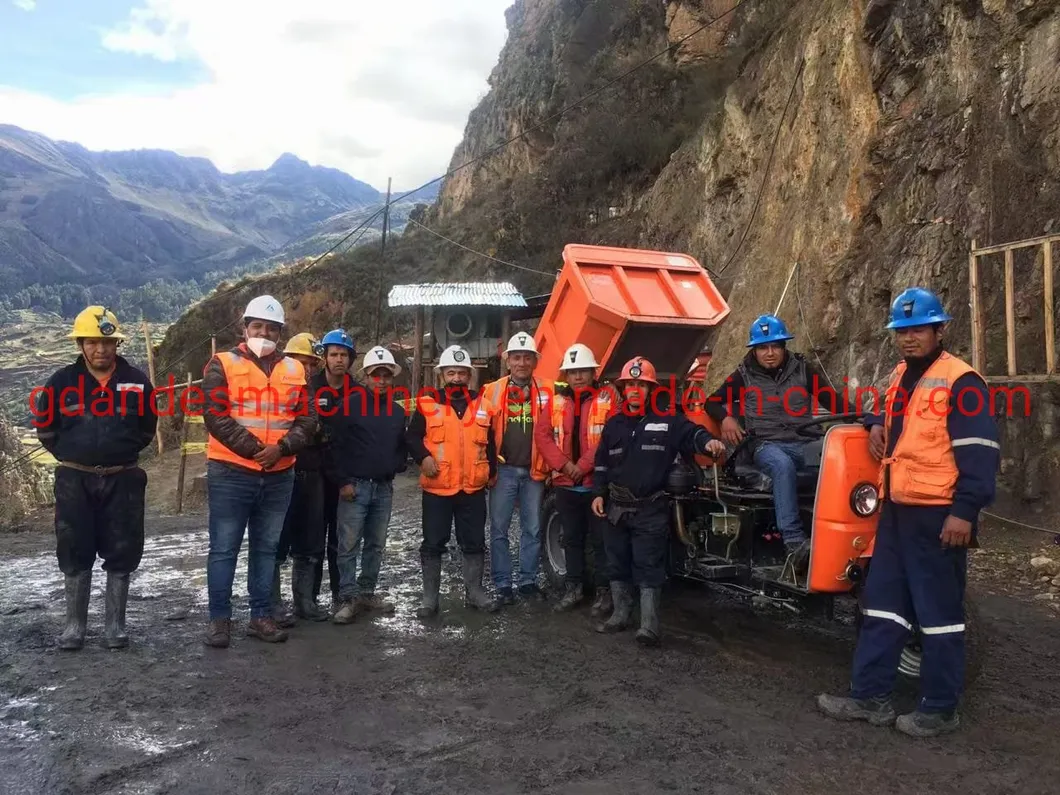

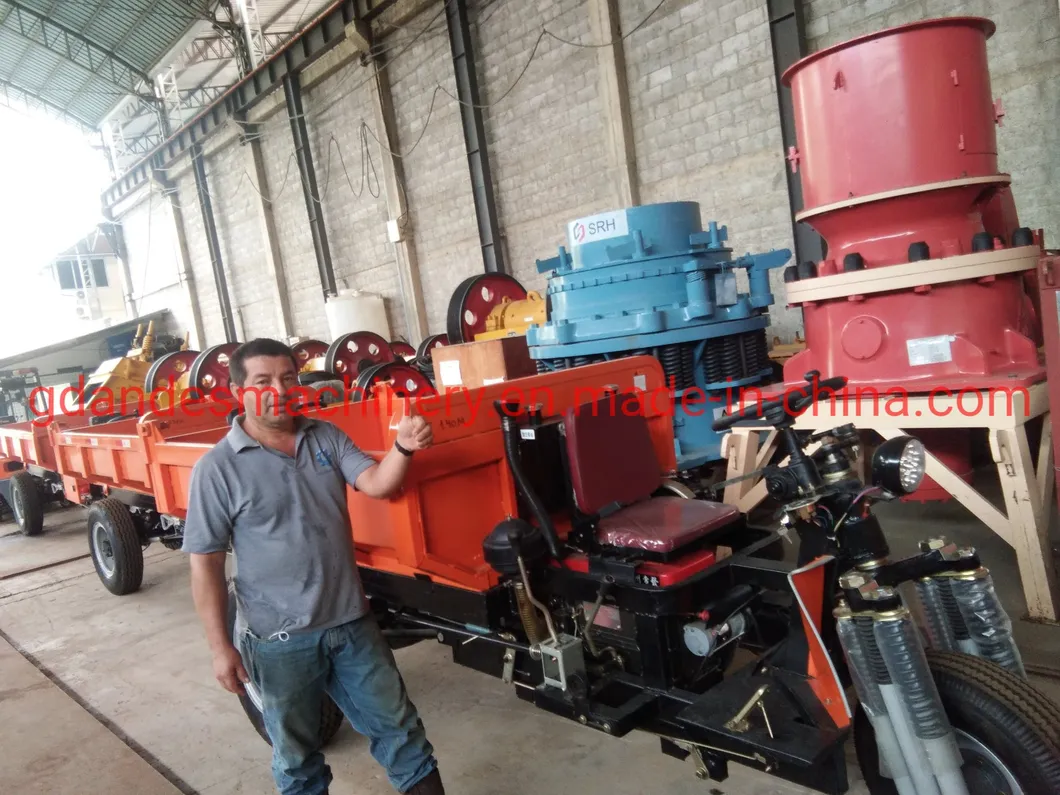

Case of client:
2021 Export to Peru, Ecuador, Africa 3 Wheels Dumper, Stronger Mini Dump Truck with Double Shock Absorption

Inquiry service:
In order to provide you the most suitable product, please help us to answer the bellow several questoins:

1. Where do you need to use the dump truck:
For underground tunnel mine and if so, the width is? Or for palmery so the dumper need to be equipped with wider tyre.

2.What is the load capacity you need?
From 1 - 30 Tones.

3. What is the engine type you prefer?
For tricycles of 1-5 tones, we have diesel motor and electrico type. For 4-wheel dumpers, we only have diesel motor type.

4. Any other special requirements, please tell us in advance.

Warmly welcome to visit our factory and we could do a video call to introduce us first.
