Three Wheel 2 Door L6e Approved Electric Step Vehicle
three wheel 2 door L6e approved electric step vehicle---J1 Three-Wheel Passenger type1.Passenger typeJ1, three-wheel typeJ2, four-wheel typePositioning: Short-distance driving for shopping, daily commute, as family's second or third vehicles.Brand Concept: Eco-Green/Fashionable/Simple/Reliable2.......
Send Inquiry
Product Description
---J1 Three-Wheel Passenger type
1.Passenger type
J1, three-wheel type
J2, four-wheel type
Positioning: Short-distance driving for shopping, daily commute, as family's second or third vehicles.
Brand Concept: Eco-Green/Fashionable/Simple/Reliable
2.J1 three-wheel elcectric vehicle
2.1 J1 Specifications
| Configuration | Item | Standard | ||
Parameter | L*W*H (mm) | 2230*1260*1700 | ||
| Wheel base(mm) | 1035 | |||
| Max. Speed(km/h) | ≥35 | |||
| Max.distance (km) | ≥80 | |||
| Capacity(person) | 3 | |||
| Curb weight(kg) | 320 | |||
| Mini ground clearance (mm) | 160 | |||
| Mini turning radius(mm) | 3.1 | |||
| Steering mode | Middle | |||
| Power system | Motor | 60V 1500W | ||
| Lithium battery | 70ah Lithum Iron phosphate Battery | |||
| Charger | Intelligent car charger for lithium battery | |||
| Brake system | Type | Hydraulic system | ||
| Front | Disc | |||
| Rear | Drum | |||
| Suspension system | Front | Individual wheel suspension | ||
| Rear | Interigral rear axle | |||
| Wheel suspension | Type | Front 120/70-12 Rear 125/65-12 | ||
| Wheel hub | Wheel hub Aluminum alloy hub | |||
| Function device | Mutil media | MP5+rearview camera | ||
| Option | A/C | 60V900W | ||
| Central Lock | Yes | |||
| Elelctric Door and Window | Yes | |||
| Skylight | Yes | |||
| One Button Start | Yes | |||
2.2 Detailed Images

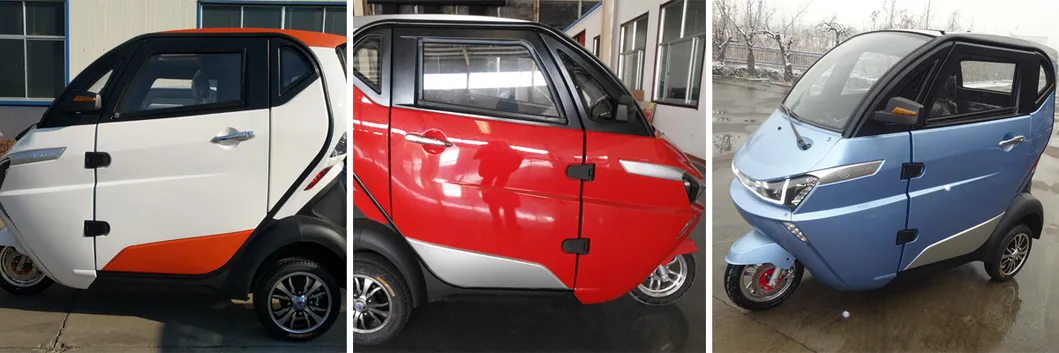

A: custom colours

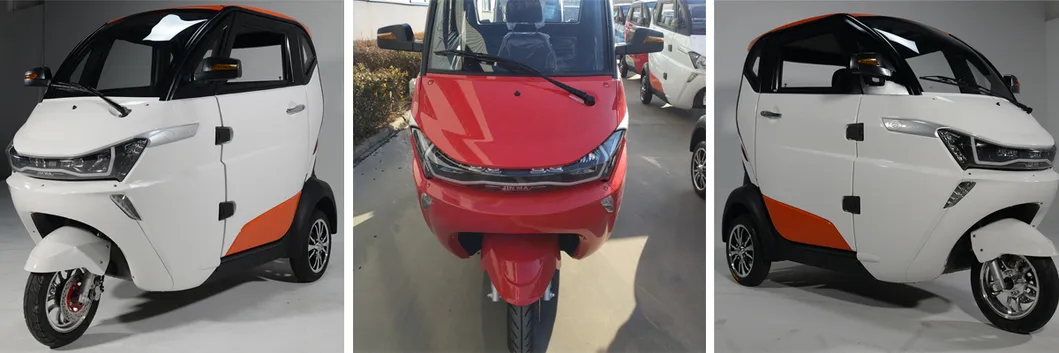

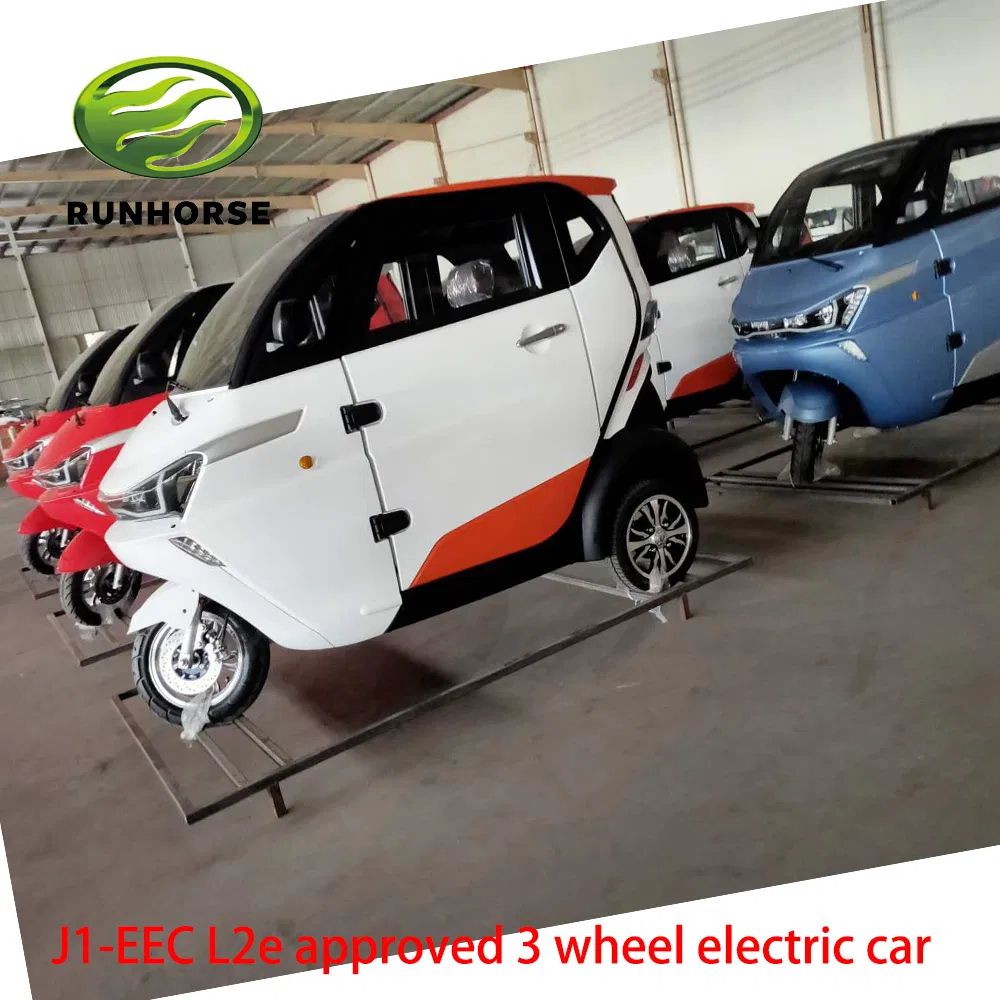

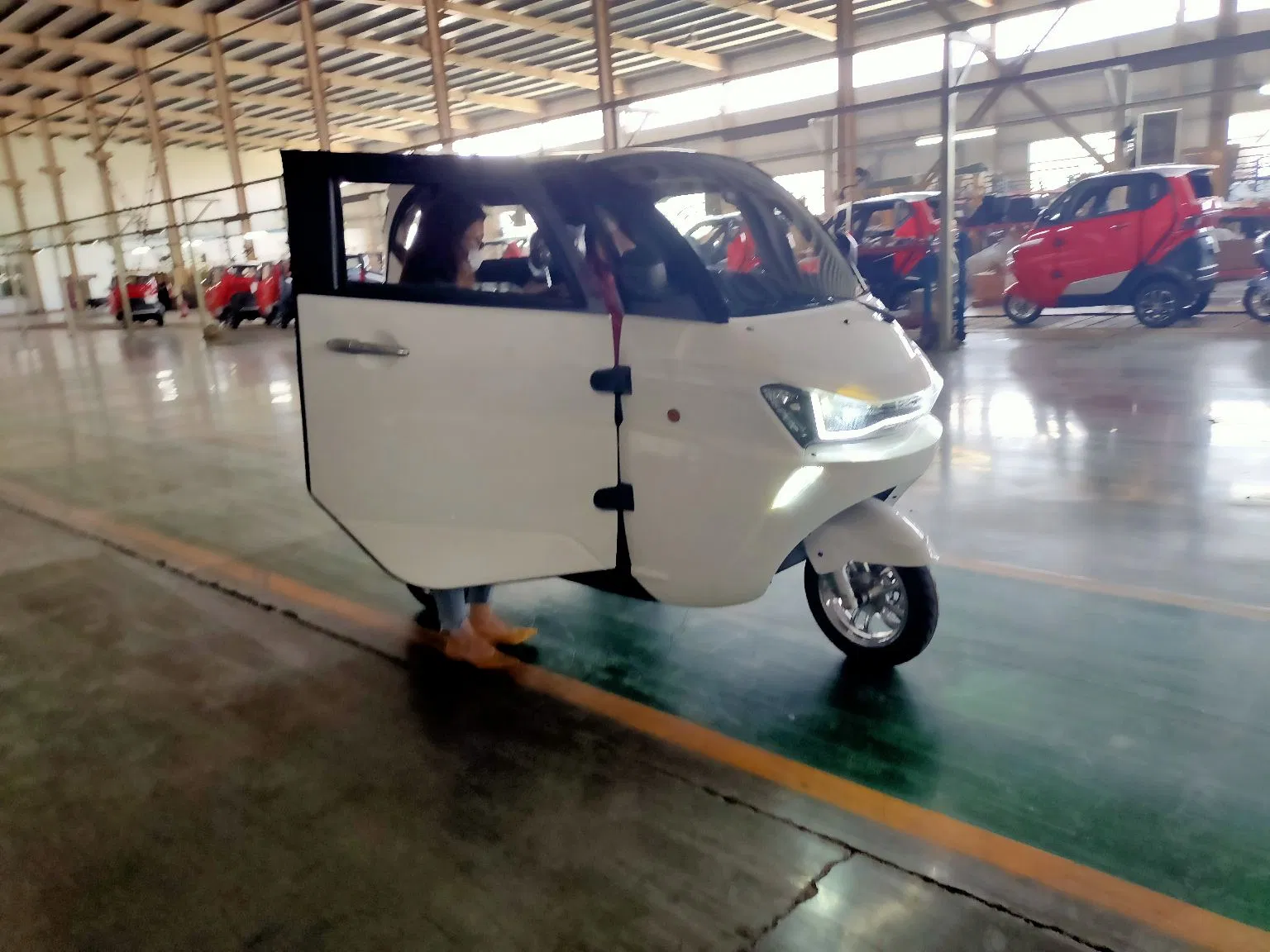

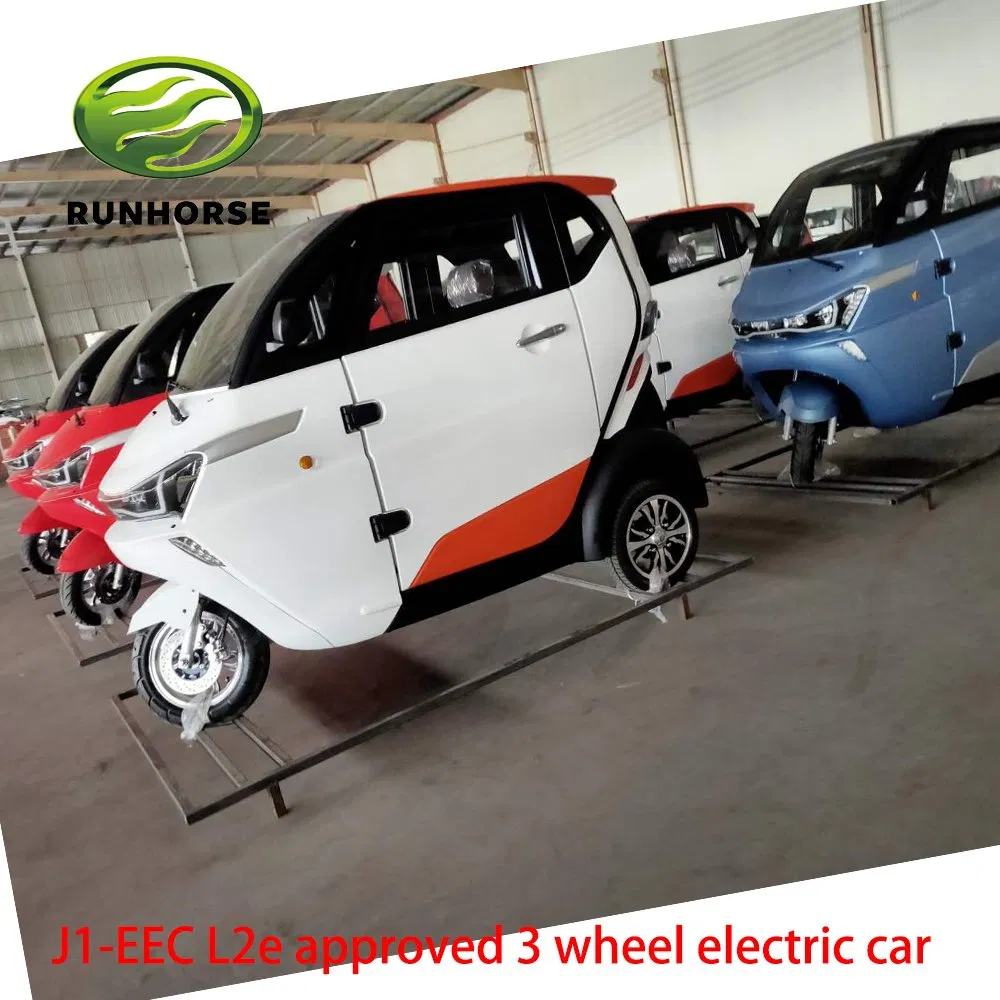

B: J1 appearance

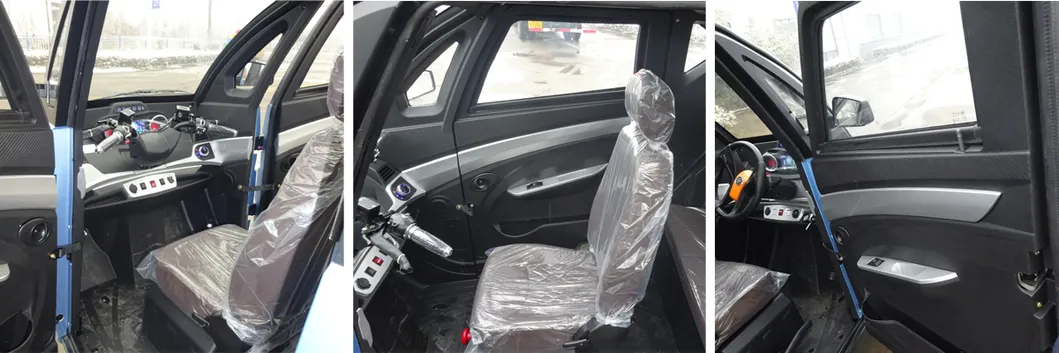

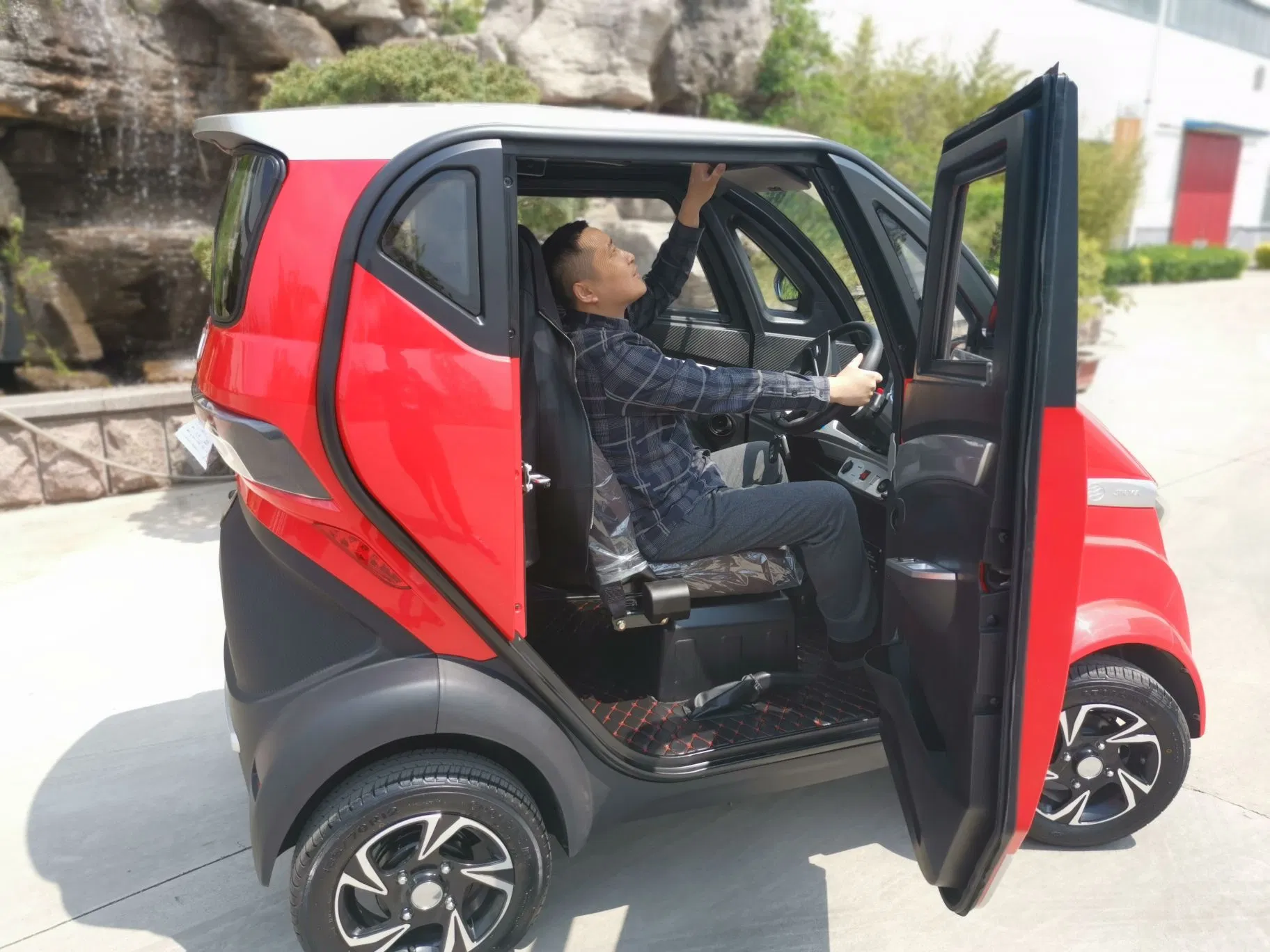

C:J1 inner decorations

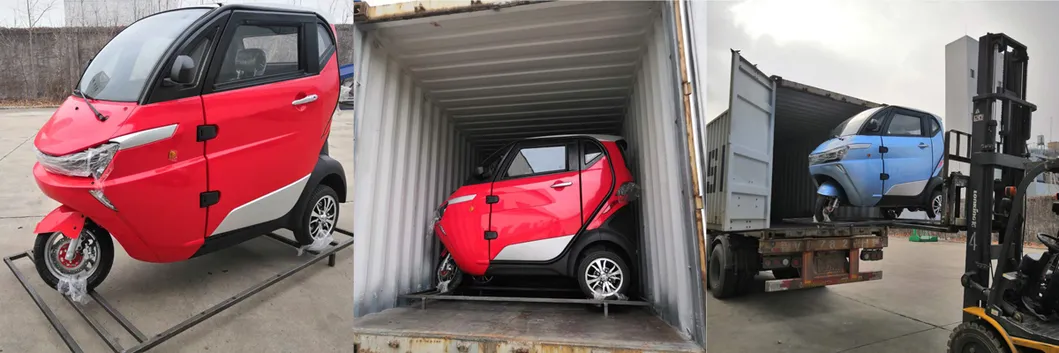

D:J1 packing
Advantages:
1, CKD (Completely Knocked Down) assembly reduce and save customs duty & transportation cost
2, Car-sharing Personal&Commercial APP, to manage and monitor all vehicles
3, Fast charger within 2-3 hours under home charger, power consumption cost of each 100Km is less than0.5$
| Motor | AC motor with auto-hold function,powerful and water proof,lower noise, no carbon brush, maintenance-free,canimprove thedrive range. |
| Battery | Large-capacity,safety and long using life Lithium Iron Phosphate battery with BMS system. 2,000 times charging cycles(8-10 years) under working environment from -20 to 80 °C. And can be equipped with a fast charge ,to achieve full charge within 2-3 hours. |
| Electronic Control System | Use En-power electric control system , reliable and water-proof, steadily current control makes motor output much stronger and higher efficiency. Adopt the first-class AC motor control algorithm to achieve accurate control of motor speed. |
| Front Windshield | 3C certified tempered and laminated glass Improve visual effect and safety performance. |
| Dashboard | LCD display, volt meter, power meter, kilometer and reverse camera,plus Bluetooth, MP5,USB connection. |
| Light System | Integral LED headlight , Turn lights, brake lights, reverse lights. Low power consumption and increase 50% more in light transmittance. |
| Plastic Cover | ABS resin , Luxury interior with sunroof. The most important mechanical properties of ABS have excellent comprehensive physical, impact resistance and toughness,Stability, two-thirds lighter weight than iron parts. |
| Brake System | Front-disc Rear-drum,two-circuit hydraulic brake, for the higher safety and stability. |
| Suspension System | The front axle and suspension are independent suspensions, simple structure and excellent stability. |
| Steering System | Use double output steering gear box to adjust the gap automatically. There is no dead angle when rotate, Operate will be more lighter. |
| Frame&Chassis | GB Standard Steel, the surface under pickling&Photostatting and corrosion-resistant treatment to ensure the excellent drive sense with stationary and solidity. |
| Seat | Adjustable seat,Genuine Leather + High Resilience PU for the comfortable and pleasant driving. |
| Tyre and Rim | Aluminum Wheels Hub, Vacuum Radial Tire. |
| Painting | Automobile-grade,Computer Painting Mixing, Robot-painting. |

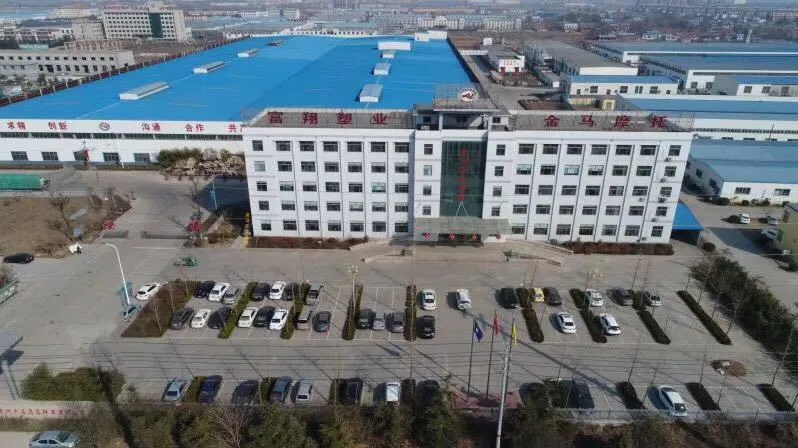

3.About Runhorse
Runhorse Holding Co.,Ltd. was founded in 2001,dedicated to producing new energy electric vehicles. It covers an area of 270,000 m2 with 700 employees, including 50 senior engineers, with 4 assembly lines for heavy-duty motorcycles, 2 cathodic electrophoresis coating lines, 2 motorcycle inspection lines for all models, 2 automatic paint lines, 3 body welding lines, 2 frame production lines, and various testing equipment. All kinds of different products have been sold to more than 50 countries in the past several years.
4.Certificates

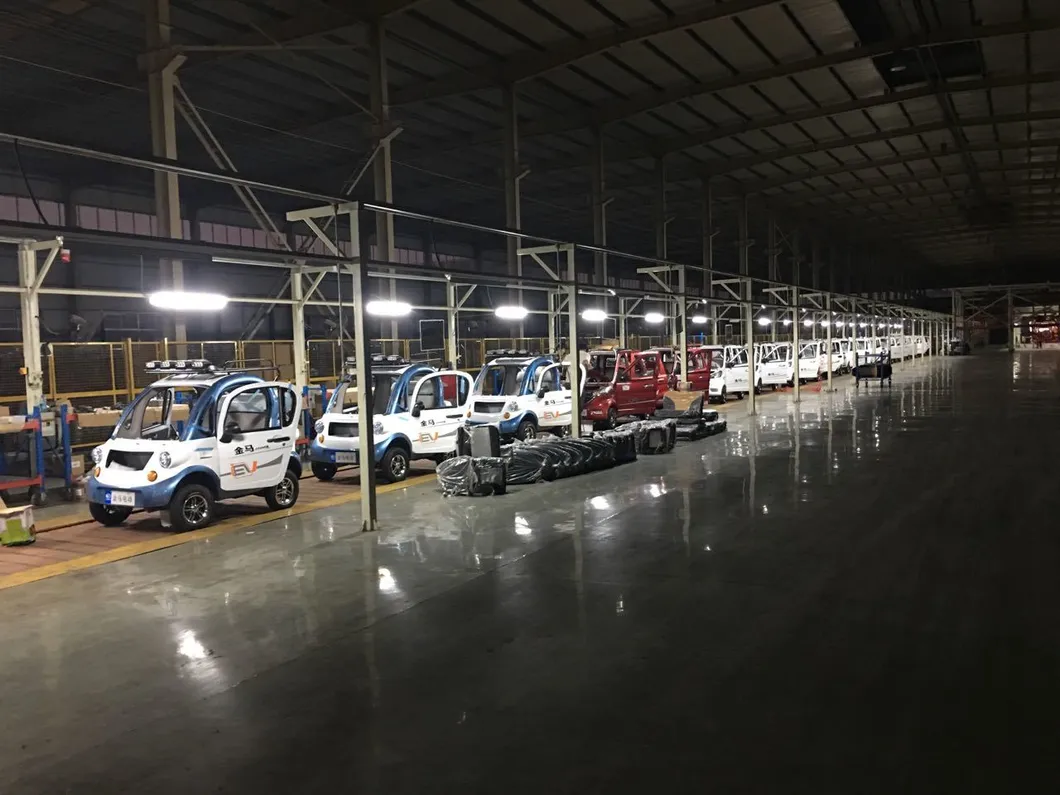

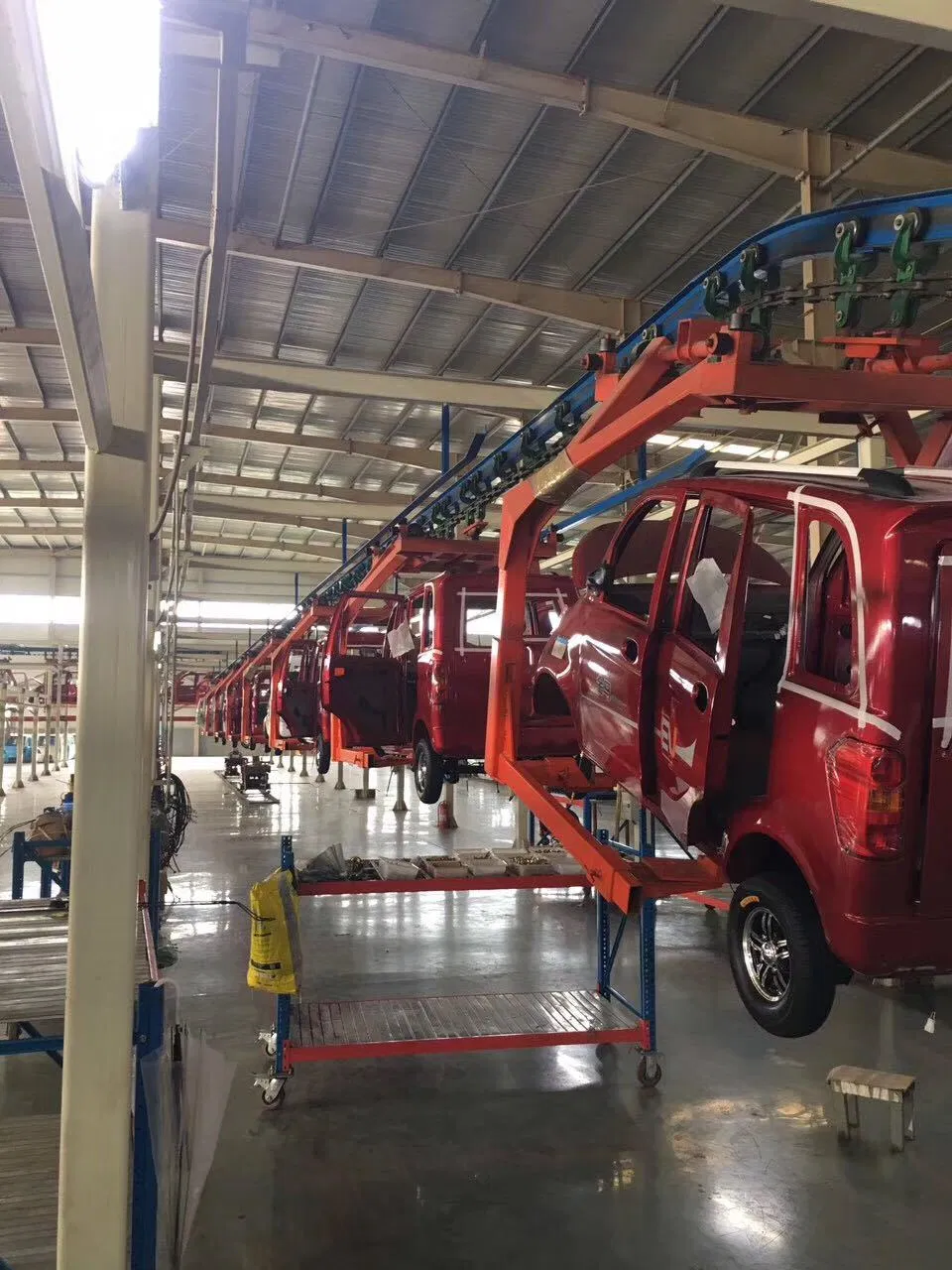

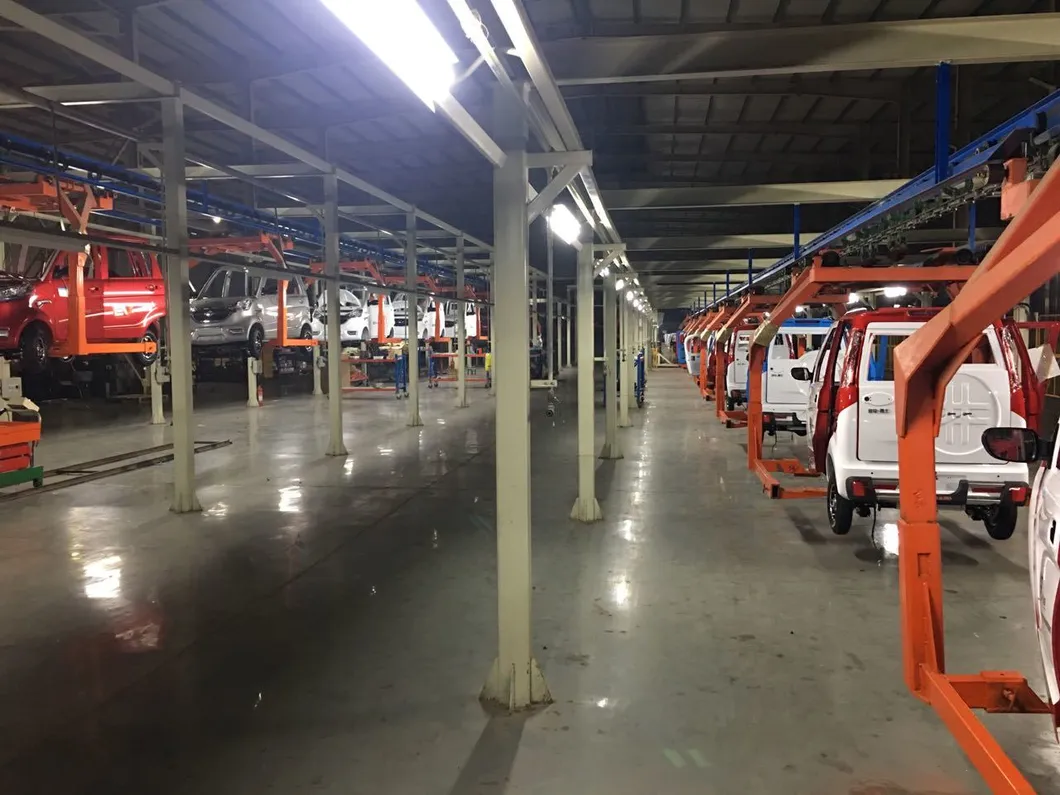

5.Production lines
6.Customers visiting & exhibitions
7.After-sale service
1. 24 hours online.
2. 1- year warranty for the whole car, 5- years warranty for the lithium battery.
3. Arrange technical man to training for dealers.
8.FAQs
Q1. Can I order different models to be one container?
A: Surely, different models can be fixed into one container.
Q2. What are your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. Photos of the products and packages will be sent to you before you pay the balance.
Q3. Do you have products in stock?
A: Mostly no. All products are to be produced according to your order including samples.
Q4. How about your delivery time?
A: Generally, it takes 10 to 20 days to finish an order. Exact delivery time would be confirmed by further communication.
Q5. Can you produce according to the samples?
A: Yes, we can also produce according to technical drawing.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, 100% test before delivery is necessary to us.
Q8: What are your terms of packing?
A: Generally, we packing with neutral white foam and brown cartons. We can also pack as your requirement.
We warmly welcome you come to visit our factory for further business communicate!
---Qingzhou Runhorse Holding Co., Ltd.
